Product Specifications

Model: EasySMX X05
Working Current: 90mA

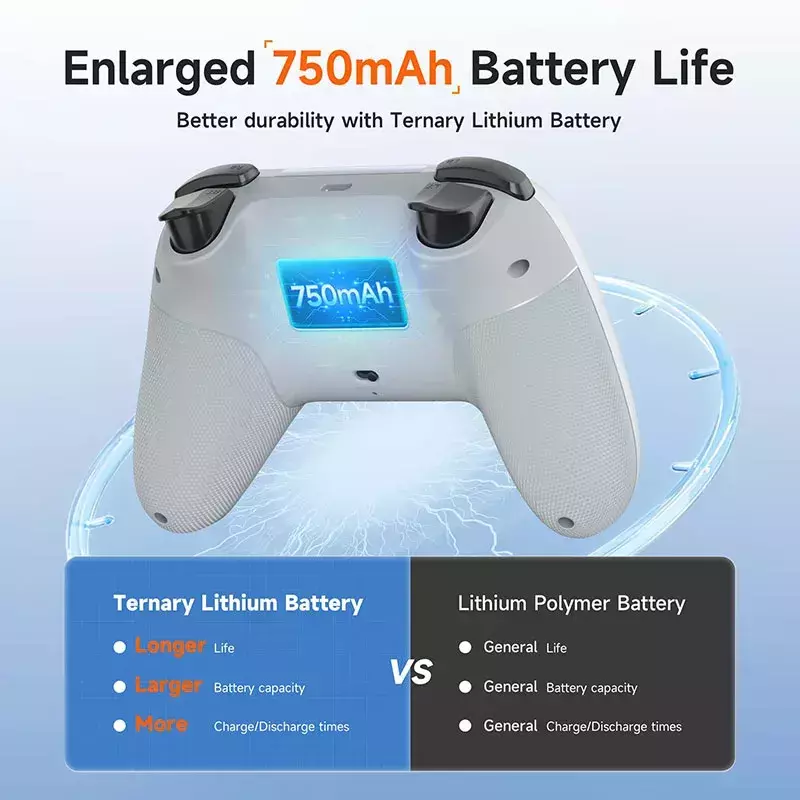

Battery Specification: 750mAh
Sleep Current: 100uA
Input Voltage: 5V
Charging Time: 2-3H

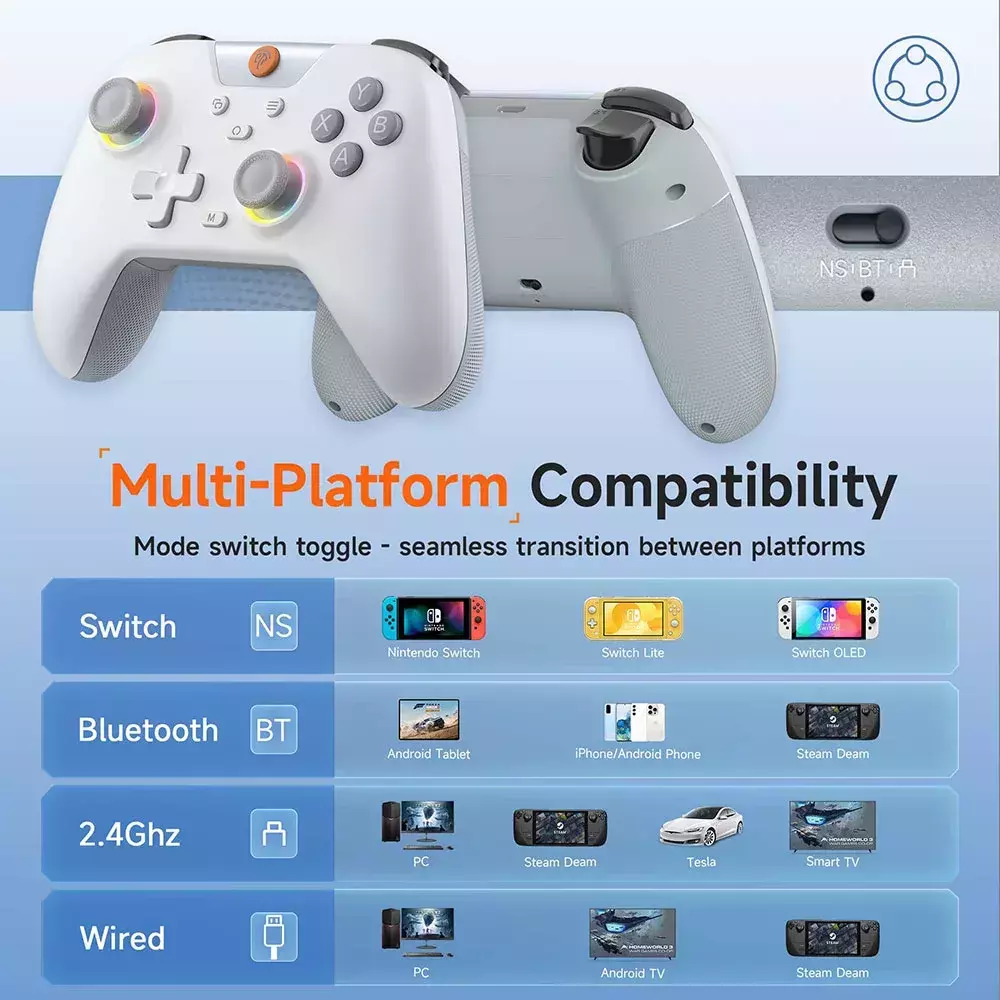

Multiple Connection Modes

The X05 controller supports 2.4G Wireless, Bluetooth, and Switch connection modes, providing versatility in connecting to different devices like PC, Switch, Android, and iOS

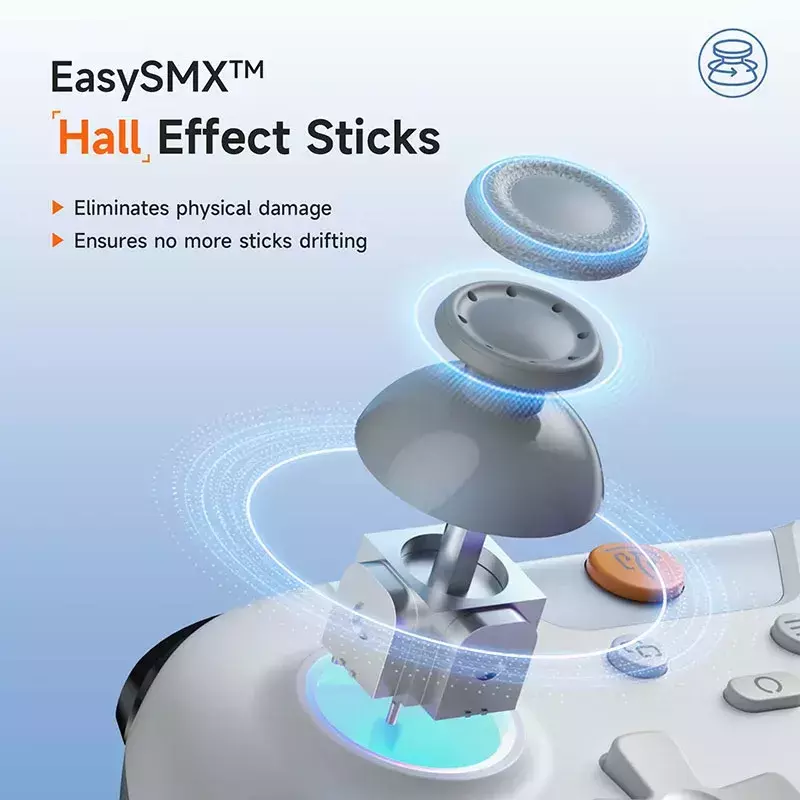

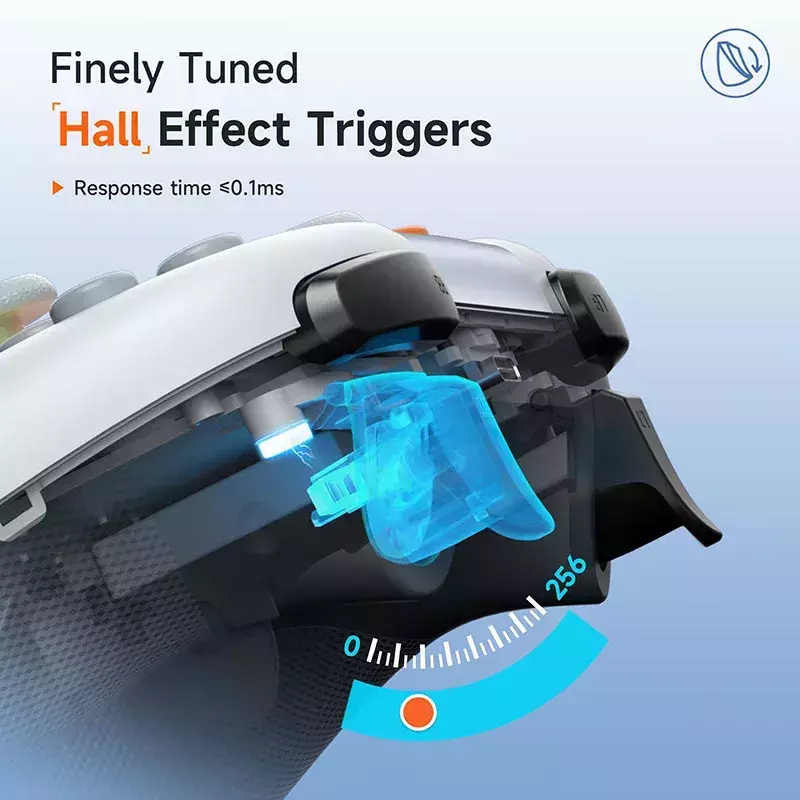

Dual Hall Effects

Equipped with dual Hall effects, including Hall triggers and Hall joysticks, the controls are more precise and avoid drift in games

RGB Light Adjustment

With the RGB adjustment mode, users can personalize their gaming experience by changing lighting modes, colors, and brightness levels via simple button combinations

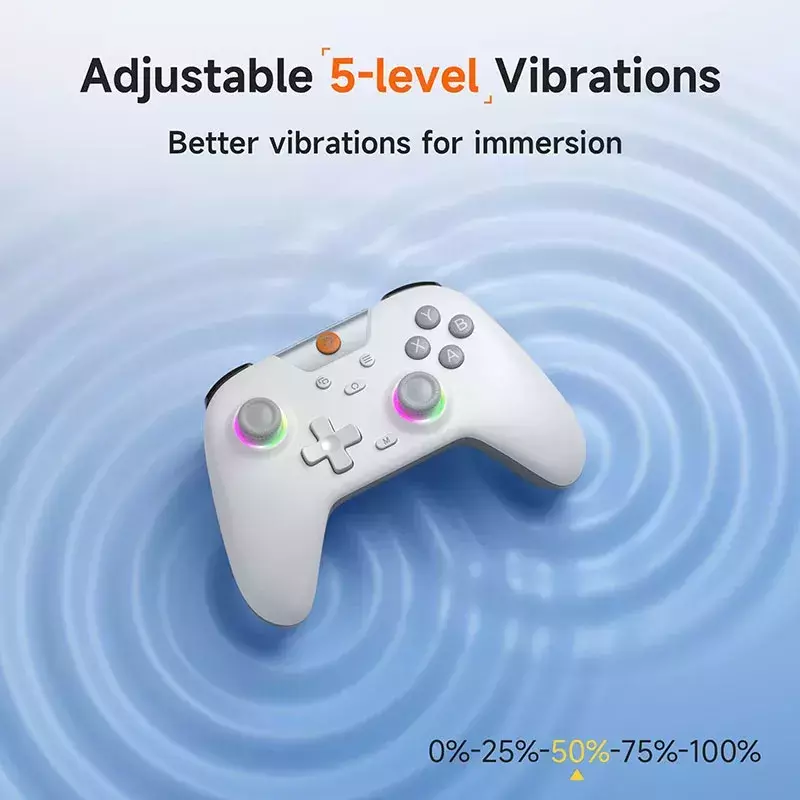

Vibration Adjustment

Users can customize vibration intensity by adjusting settings like M+Left joystick up to enhance vibration or M+Left joystick down to reduce it to various levels

Intelligent Power Saving Design

Automatic shutdown function, low power reminder function, and low sleep current design to ensure battery life and convenience

Joystick and Trigger Calibration

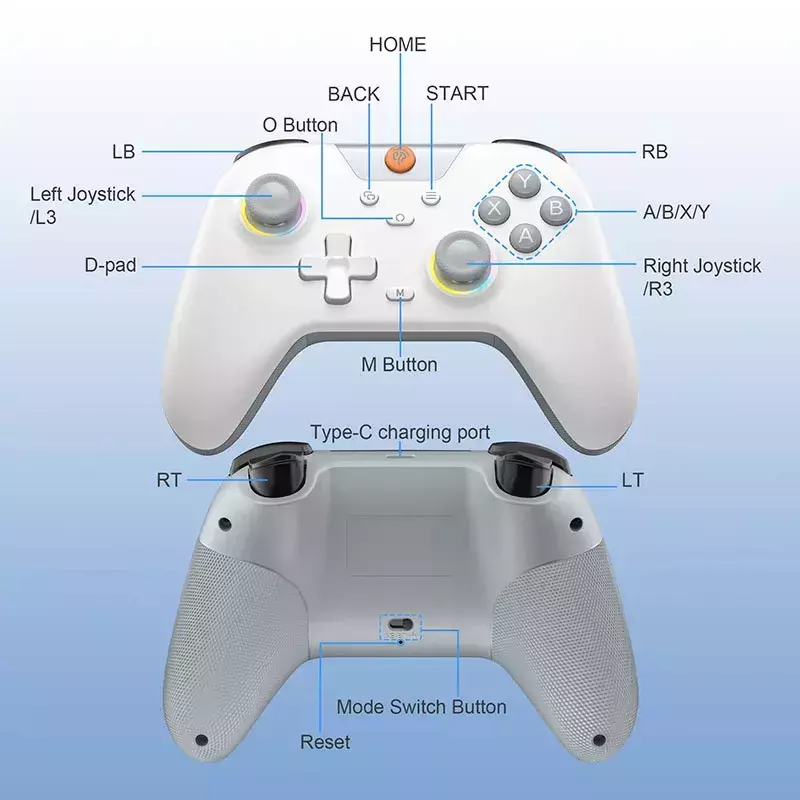

The controller allows for calibration by pressing HOME+BACK+B for 3 seconds, enabling precise adjustments to triggers and joysticks for optimal gaming experience

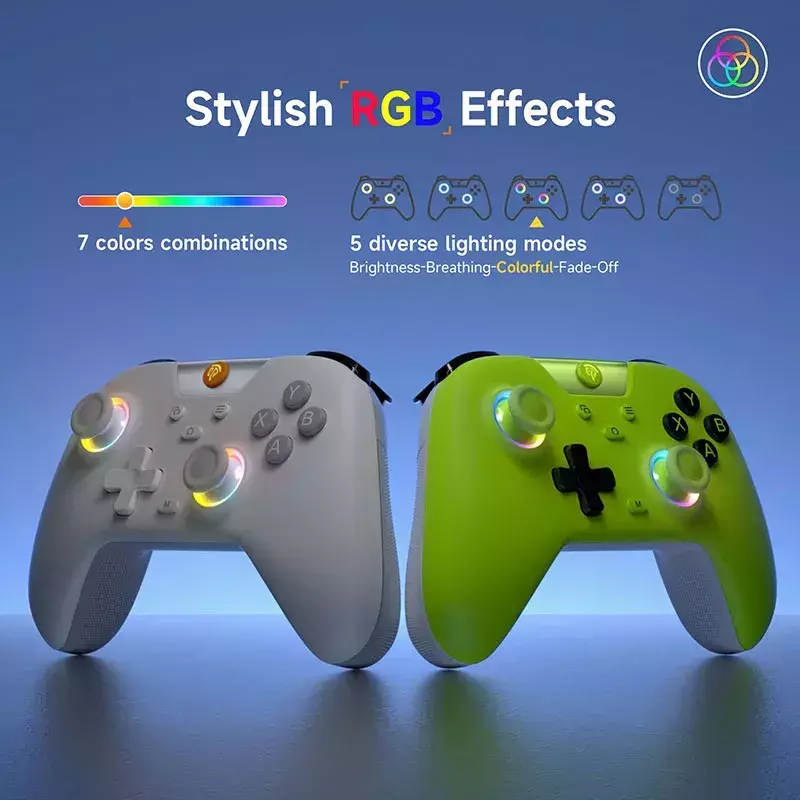

RGB Light Adjustment

Double-click the M button, the controller will vibrate briefly, and enter the RGB adjustment mode.
1. Change Lighting mode: Use the left joystick UP and DOWN to switch between light modes (steady-on, breathing, dazzling, gradient, off);
2. Change the lighting color: Use the left joystick LEFT and RIGHT to switch between light colors (red, orange, yellow, green, cyan, blue, purple);
3. Adjust the brightness: press M+L3.
After setting, press M briefly to exit the light adjustment mode.

Package List

1 x Wireless Controller
1 x Wireless Receiver
1 x Type-C Data Cable
1 x Product Manual
2 x Rocker caps
